A 1-1/2 inch outside diameter steel handrail mounts to the wall using mounting brackets spaced at a maximum of 48 inches on center, primed and painted. The rail bracket secures with 3/8 inch diameter anchor bolts fastened through one layer of 5/8 inch gypsum board on one side of metal studs spaced at 16 inches on center. A continuous 3-5/8 inch metal stud runner attaches to the vertical studs using 3/8 inch pan head screws, with the flange of the continuous stud cut and turned up at the vertical studs.

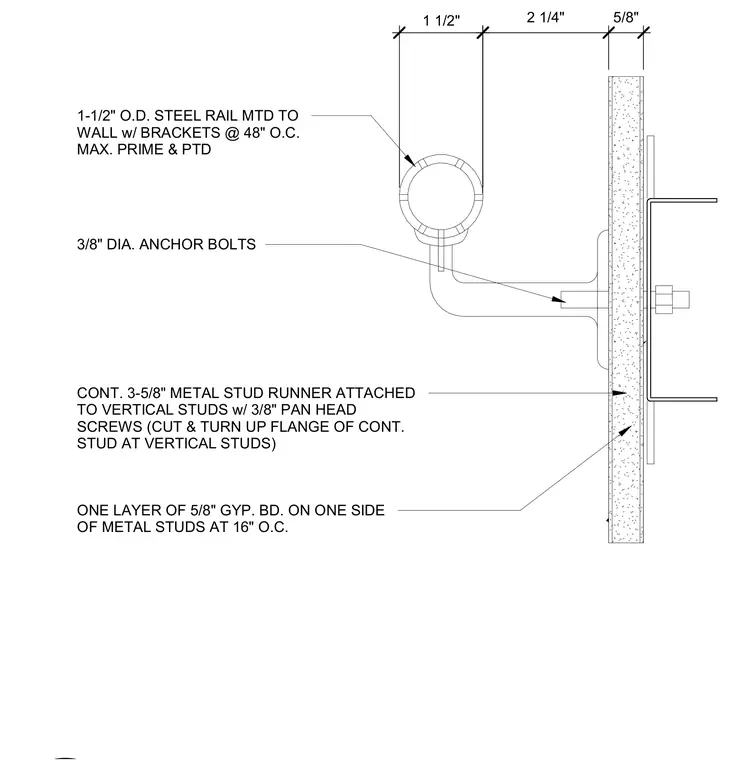

1-1/2" O.D. STEEL RAIL MTD TO WALL w/ BRACKETS @ 48" O.C. MAX. PRIME & PTD ONE LAYER OF 5/8" GYP. BD. ON ONE SIDE OF METAL STUDS AT 16" O.C. CONT. 3-5/8" METAL STUD RUNNER ATTACHED TO VERTICAL STUDS w/ 3/8" PAN HEAD SCREWS (CUT & TURN UP FLANGE OF CONT. STUD AT VERTICAL STUDS) 3/8" DIA. ANCHOR BOLTS 2 1/4" 5/8" 1 1/2"
