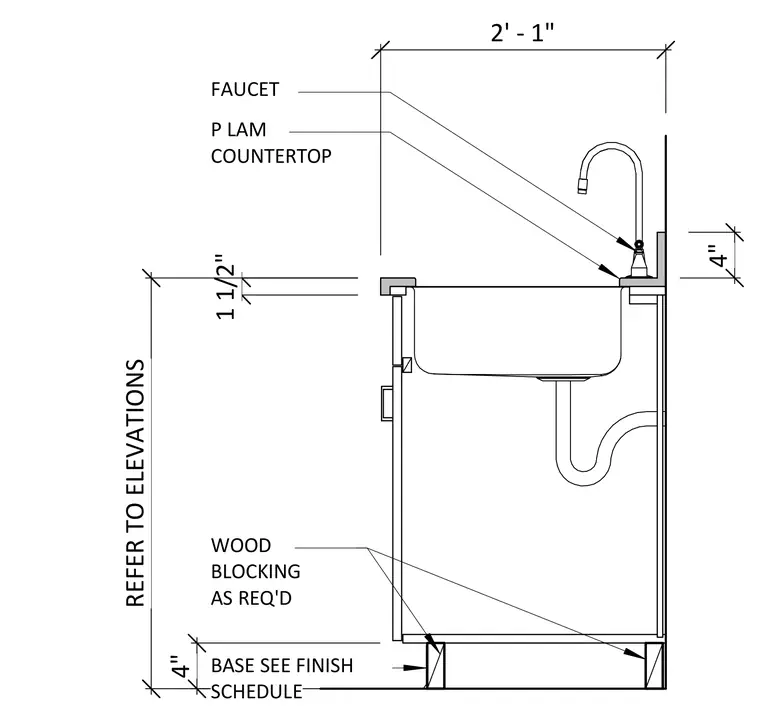

This sink base cabinet assembly features a plastic laminate countertop set over a wood millwork cabinet body. A faucet mounts directly to the countertop above the integrated basin and under-sink plumbing. Wood blocking is provided as required for structural support and attachment. The base is elevated on a toe kick with a base finish sized per the finish schedule.
4" 1 1/2" REFER TO ELEVATIONS 4" FAUCET P LAM COUNTERTOP BASE SEE FINISH SCHEDULE WOOD BLOCKING AS REQ'D 2' - 1"
