An aluminum alloy TD-15 T-mold transition strip joins the scheduled carpet or walk-off mat to the scheduled LVT floor. The floor transition occurs at the centerline of the door leaf. Subfloor build-up is varied as necessary to achieve a flush transition finish.

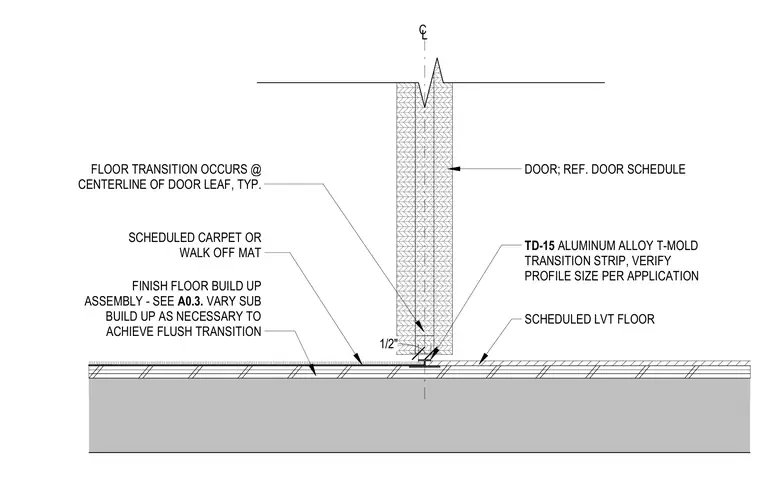

SCHEDULED CARPET OR WALK OFF MAT DOOR; REF. DOOR SCHEDULE FLOOR TRANSITION OCCURS @ CENTERLINE OF DOOR LEAF, TYP. C L SCHEDULED LVT FLOOR FINISH FLOOR BUILD UP ASSEMBLY - SEE A0.3. VARY SUB BUILD UP AS NECESSARY TO ACHIEVE FLUSH TRANSITION TD-15 ALUMINUM ALLOY T-MOLD TRANSITION STRIP, VERIFY PROFILE SIZE PER APPLICATION 1/2"
