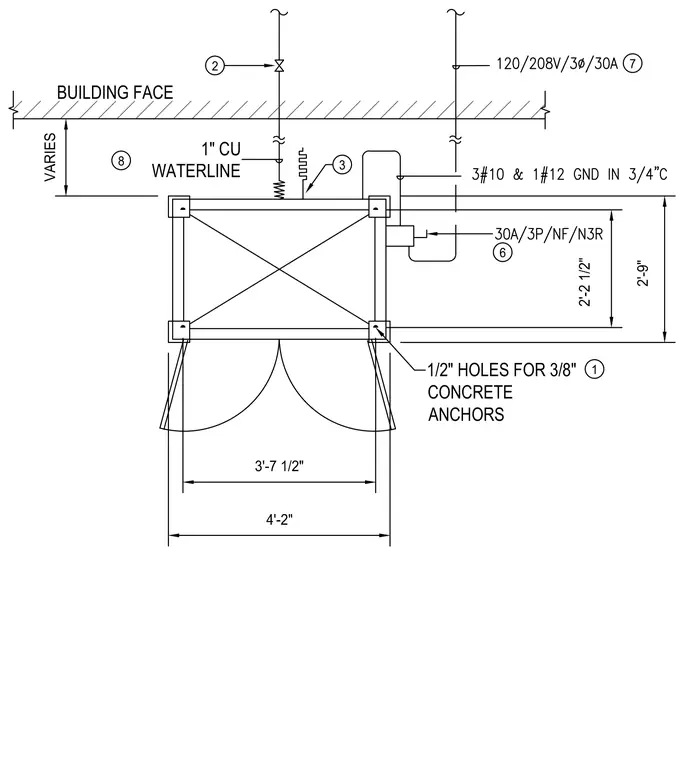

A potable water cabinet is mounted against a building face with a variable offset distance, anchored by three-eighths-inch concrete anchors through half-inch holes. A one-inch copper waterline feeds the cabinet with a valve and flexible connection. Electrical service is supplied via three number ten and one number twelve ground wires in a three-quarter-inch conduit, connecting to a thirty-ampere, three-pole, non-fused, NEMA 3R enclosure operating at 120/208-volt, three-phase, thirty-ampere power.
BUILDING FACE 1" CU WATERLINE 1 6 7 8 2 1/2" HOLES FOR 3/8" CONCRETE ANCHORS VARIES 3'-7 1/2" 4'-2" 2'-2 1/2" 2'-9" 3
