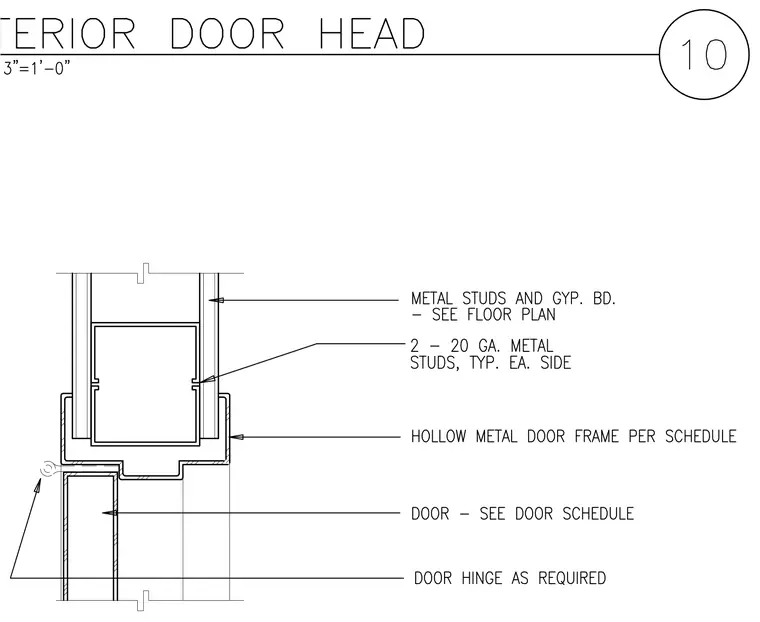

An interior door head assembly integrates a hollow metal door frame with metal studs and gypsum board partitions. A hollow metal door frame per schedule receives the door leaf, which hangs on hinges as required. The head of the frame anchors against adjacent metal framing consisting of two twenty-gauge metal studs on each side, flanked by metal studs and gypsum board sized per the floor plan.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
