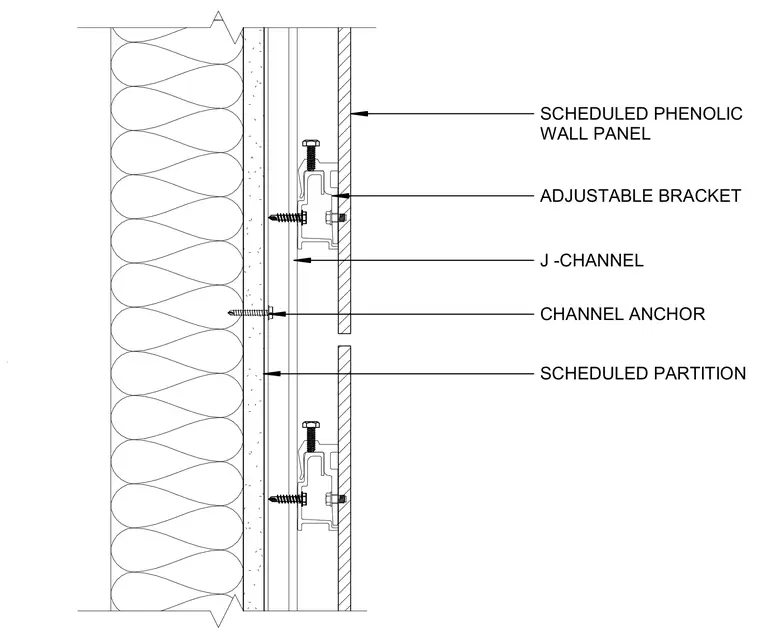

Scheduled phenolic wall panels attach to adjustable brackets and J-channels secured to the substrate with channel anchors. The adjustable brackets support the upper and lower panel edges, forming a horizontal panel joint over the partition assembly.
SCHEDULED PARTITION SCHEDULED PHENOLIC WALL PANEL J -CHANNEL ADJUSTABLE BRACKET CHANNEL ANCHOR
