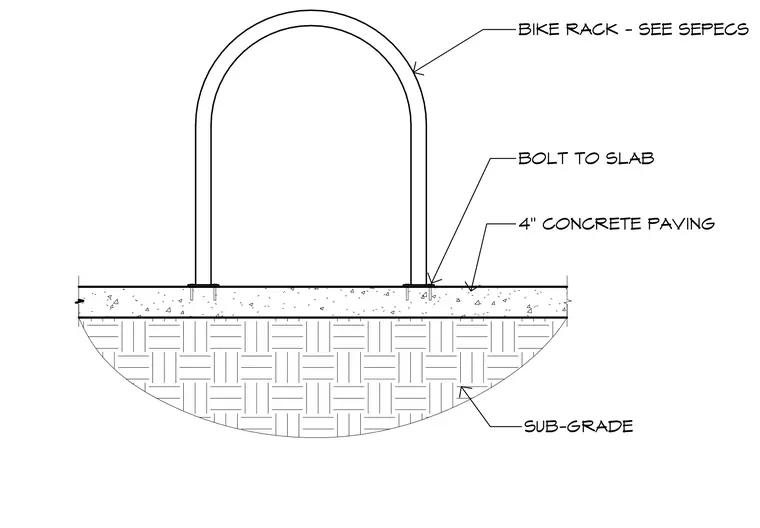

A bicycle rack is surface-mounted to a four-inch concrete paving slab over a compacted subgrade. The rack base is anchored directly to the concrete slab using bolts per specifications. The bike rack itself is sized and detailed per specifications.
