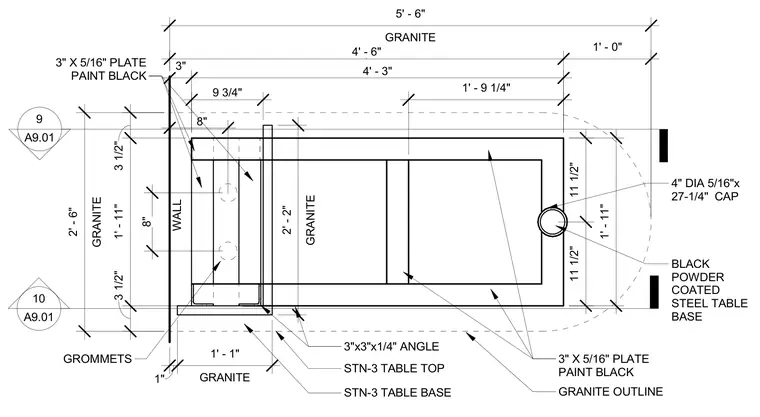

A custom bullet-shaped desk assembly anchored against a wall. The framework consists of a black powder-coated steel base constructed from three-by-three-by-one-quarter-inch steel angles and three-by-five-sixteenth-inch steel plates painted black. A one-inch thick granite top rests on the steel structure, complemented by a four-inch diameter by twenty-seven-and-one-quarter-inch cap and integrated grommets for cable management.
3" 4' - 3" 11 1/2" 11 1/2" 1' - 11" 8" 8" GROMMETS 3"x3"x1/4" ANGLE 3" X 5/16" PLATE PAINT BLACK 4" DIA 5/16"x 27-1/4" CAP 9 3/4" WALL 1" GRANITE 1' - 1" STN-3 TABLE BASE STN-3 TABLE TOP BLACK POWDER COATED STEEL TABLE BASE 3 1/2" 1' - 11" 3 1/2" GRANITE 2' - 6" GRANITE 2' - 2" 3" X 5/16" PLATE PAINT BLACK GRANITE 5' - 6" 4' - 6" 1' - 0" GRANITE OUTLINE 1' - 9 1/4" 9 A9.01 10 A9.01
