Three-inch metal stud framing supports sound attenuation batt insulation within the wall cavity. Each side of the partition is faced with five-eighths-inch gypsum wall board, with a one-inch Type-X gypsum wall board assembly applied. Stud spacing is coordinated per the structural drawings, and wall finishes are scheduled separately on the interior elevations.

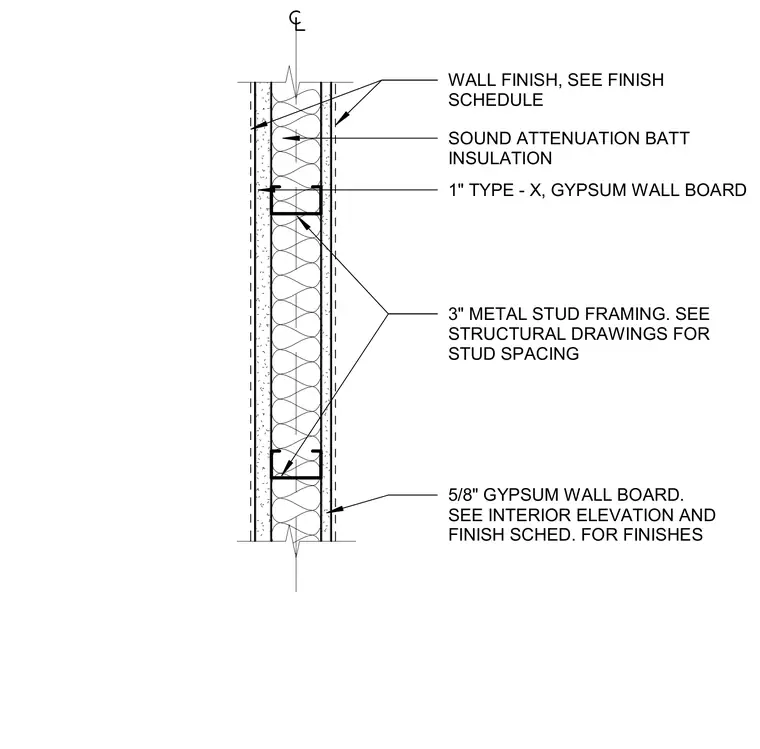

3" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES 1" TYPE - X, GYPSUM WALL BOARD WALL FINISH, SEE FINISH SCHEDULE
