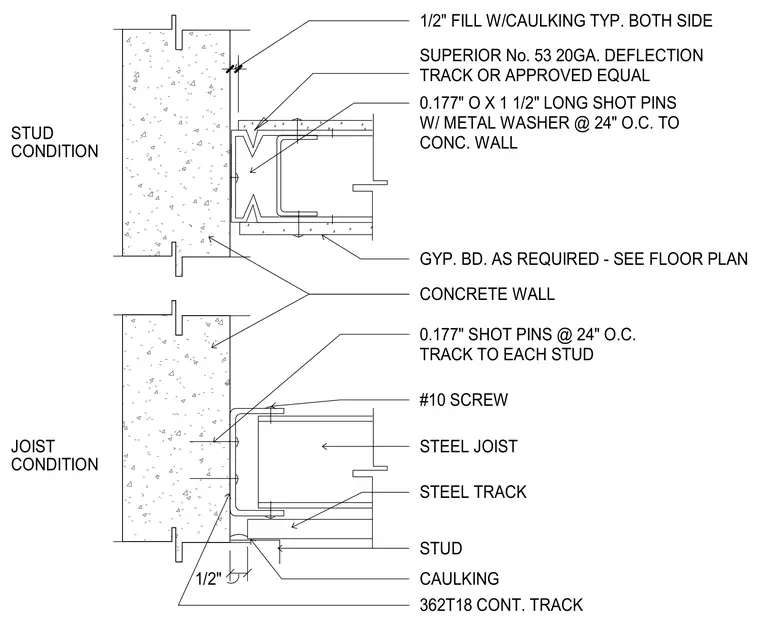

A continuous 362T18 steel track or twenty-gauge deflection track fastens to a concrete wall using zero-point-one-seven-seven-inch by one-and-one-half-inch long shot pins with metal washers spaced at twenty-four inches on center. The steel joist and framing studs secure to the track using number ten screws. A one-half-inch joint filled with caulking runs on both sides of the junction between the concrete and framing assembly. Gypsum board finishes the interior side as required per the floor plan.
STUD 1/2" CONDITION STUD CONDITION JOIST STEEL TRACK CAULKING STEEL JOIST #10 SCREW 0.177" SHOT PINS @ 24" O.C. TRACK TO EACH STUD 0.177" O X 1 1/2" LONG SHOT PINS W/ METAL WASHER @ 24" O.C. TO CONC. WALL CONCRETE WALL 1/2" FILL W/CAULKING TYP. BOTH SIDE GYP. BD. AS REQUIRED - SEE FLOOR PLAN SUPERIOR No. 53 20GA. DEFLECTION TRACK OR APPROVED EQUAL 362T18 CONT. TRACK
