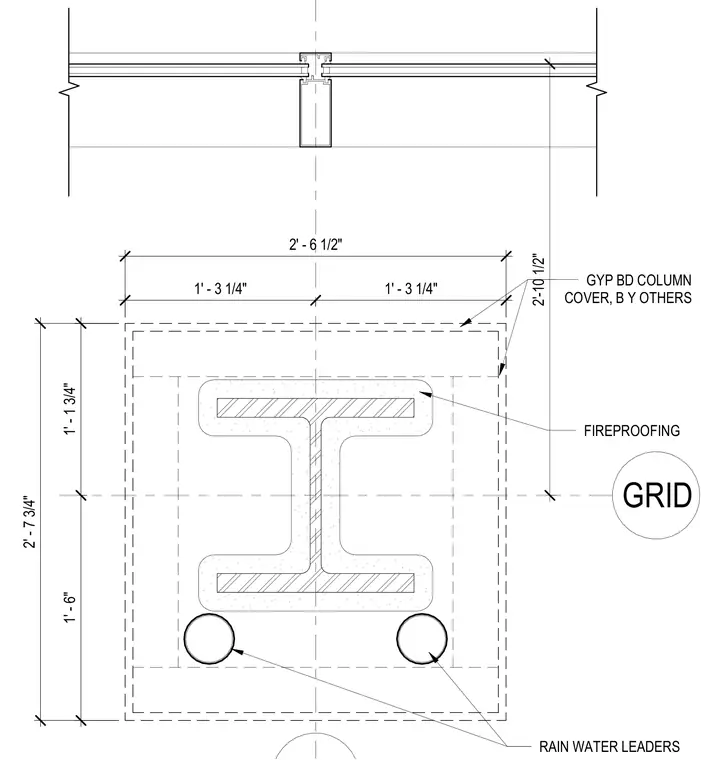

A gypsum board column cover encloses a structural steel wide-flange column wrapped in fireproofing. Two rainwater leaders are positioned adjacent to the column within the enclosure space. Dimensions establish the layout relative to the structural grid lines. The gypsum board enclosure is designated as being provided by others.
GYP BD COLUMN COVER, B Y OTHERS FIREPROOFING GRID RAIN WATER LEADERS 1' - 3 1/4" 1' - 3 1/4" 1' - 6" 1' - 1 3/4" 2' - 6 1/2" 2' - 7 3/4" 2'-10 1/2"
