Architectural · A-GJ76P

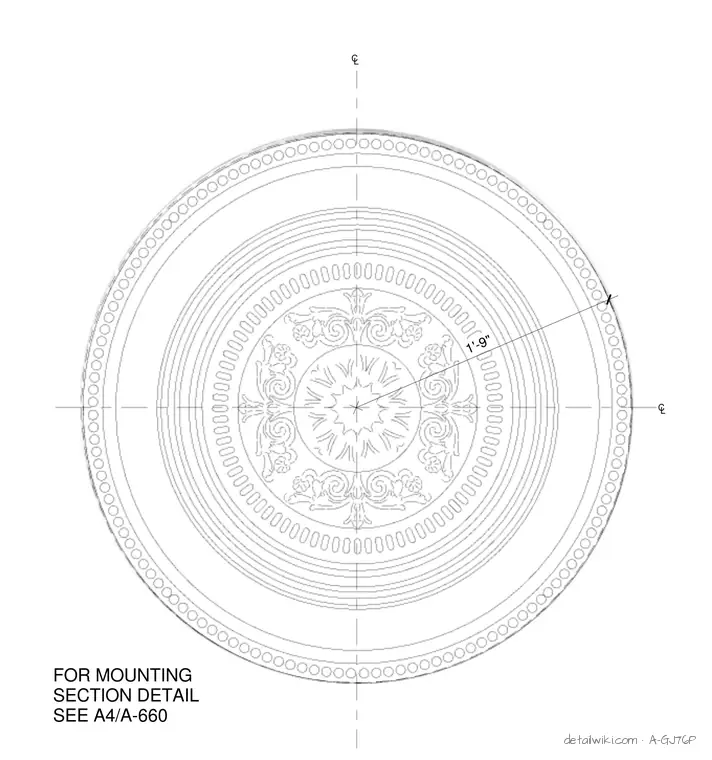

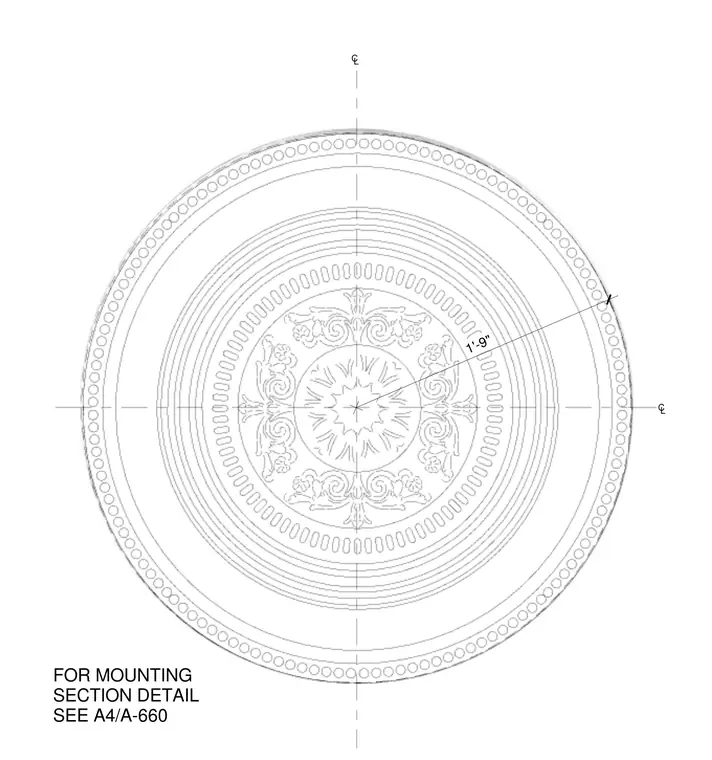

T205 Custom Medallion

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Elements

Millwork / Casework

Text on the drawing

CL CL 1'-9" FOR MOUNTING SECTION DETAIL SEE A4/A-660
