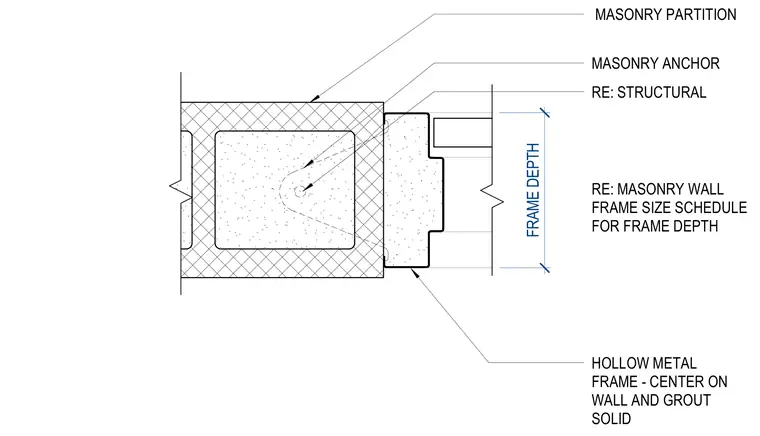

A hollow metal frame is centered on a masonry partition wall and grouted solid. Masonry anchors secure the frame to the CMU wall, with frame depth sized per the door schedule. Additional reinforcing is provided per structural drawings.
FRAME DEPTH HOLLOW METAL FRAME - CENTER ON WALL AND GROUT SOLID MASONRY ANCHOR MASONRY PARTITION RE: STRUCTURAL RE: MASONRY WALL FRAME SIZE SCHEDULE FOR FRAME DEPTH
