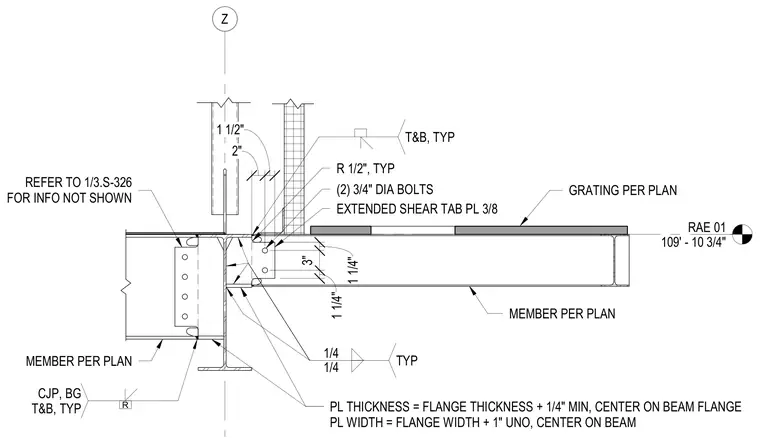

An extended shear tab measuring three-eighths of an inch thick connects to the beam web using two three-quarter-inch diameter bolts. A stiffener plate is centered on the beam flange with a thickness equal to the flange thickness plus one-quarter inch minimum and a width equal to the flange width plus one inch unless otherwise noted. A one-quarter-inch fillet weld is applied typically. Complete joint penetration welds with backing are specified at top and bottom typical locations. Grating rests on the assembly per plan.
RAE 01 109' - 10 3/4" Z PL THICKNESS = FLANGE THICKNESS + 1/4" MIN, CENTER ON BEAM FLANGE PL WIDTH = FLANGE WIDTH + 1" UNO, CENTER ON BEAM 1/4 1/4 TYP EXTENDED SHEAR TAB PL 3/8 T&B, TYP MEMBER PER PLAN R CJP, BG T&B, TYP 1 1/4" 3" 1 1/4" MEMBER PER PLAN REFER TO 1/3.S-326 FOR INFO NOT SHOWN 1 1/2" 2" R 1/2", TYP (2) 3/4" DIA BOLTS GRATING PER PLAN
