A prefinished sheet metal head flashing with a hemmed drip edge is installed at the top of the window frame. A liquid-applied flashing prestrip and additional liquid-applied flashing extend from the weather-resistive barrier over the sheet metal flashing to conceal fasteners. The assembly incorporates GRC cladding supported by Cascadia clips and a 1.75-inch vertical metal Z-girt system fastened with two rows of sheet metal screws. A half-inch silicone sealant with backer rod ties into the continuous seal at the window perimeter, supplemented by a silicone sealant heel bead at the full perimeter of the interior glazed insulated glass unit. Insect screens and prefinished metal flashing cover the insulation above the window head, and continuous support is provided for the finish at strap locations.

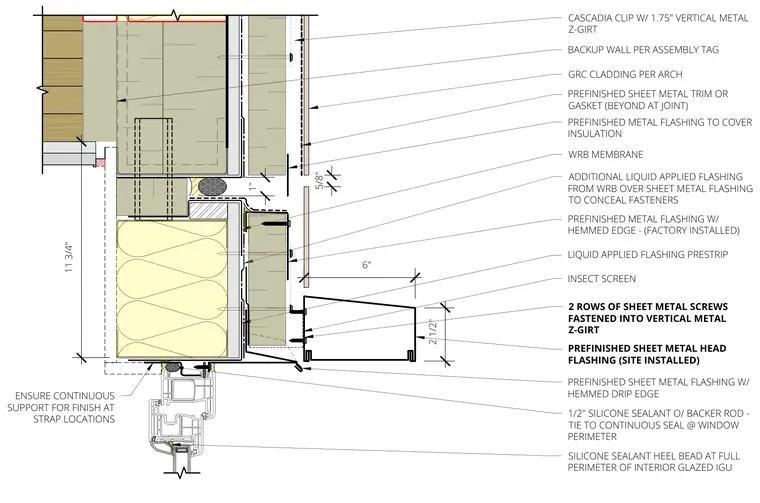

2 1/2" 6" 1" LIQUID APPLIED FLASHING PRESTRIP PREFINISHED SHEET METAL HEAD FLASHING (SITE INSTALLED) 1/2" SILICONE SEALANT O/ BACKER ROD - TIE TO CONTINUOUS SEAL @ WINDOW PERIMETER WRB MEMBRANE CASCADIA CLIP W/ 1.75" VERTICAL METAL Z-GIRT GRC CLADDING PER ARCH PREFINISHED SHEET METAL TRIM OR GASKET (BEYOND AT JOINT) BACKUP WALL PER ASSEMBLY TAG 2 ROWS OF SHEET METAL SCREWS FASTENED INTO VERTICAL METAL Z-GIRT ADDITIONAL LIQUID APPLIED FLASHING FROM WRB OVER SHEET METAL FLASHING TO CONCEAL FASTENERS PREFINISHED SHEET METAL FLASHING W/ HEMMED DRIP EDGE INSECT SCREEN PREFINISHED METAL FLASHING W/ HEMMED EDGE - (FACTORY INSTALLED) SILICONE SEALANT HEEL BEAD AT FULL PERIMETER OF INTERIOR GLAZED IGU 8001 8095 7134 8727 Ix=2.20 8727 Ix=2.20 5/8" PREFINISHED METAL FLASHING TO COVER INSULATION 11 3/4" ENSURE CONTINUOUS SUPPORT FOR FINISH AT STRAP LOCATIONS
