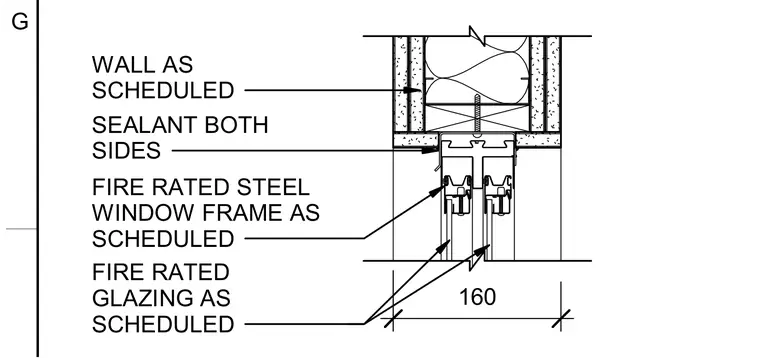

A fire-rated steel window frame is secured to the head of a wall assembly as scheduled. Fire-rated glazing is installed within the frame with continuous sealant applied on both sides at the interface. The surrounding wall construction accommodates the framed opening per architectural specifications.
160 FIRE RATED GLAZING AS SCHEDULED FIRE RATED STEEL WINDOW FRAME AS SCHEDULED SEALANT BOTH SIDES WALL AS SCHEDULED G
