Architectural · A-GGVGS

Clerestory Head and Storefront Integration Detail

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Columns Beams Storefronts Ceilings Waterproofing / Flashing

Connections

HSS Connection

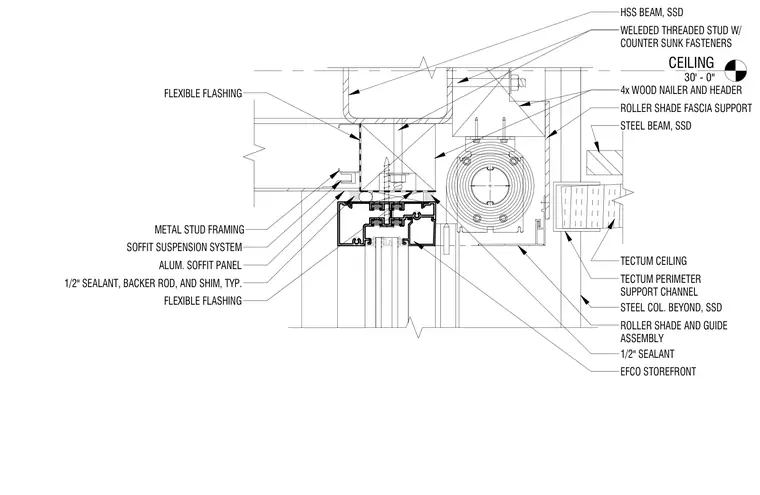

About this detail

An hollow structural section beam and a structural steel beam support the overhead construction, anchored with welded threaded studs and countersunk fasteners. A four-by wood nailer and header frame the upper perimeter, tying into metal stud framing and supporting a roller shade fascia along with a roller shade and guide assembly. An EFCO storefront head section meets a Tectum ceiling system, which is carried on a Tectum perimeter support channel. The aluminum soffit panel is hung from a soffit suspension system and integrated with flexible flashing layers. Joints at the storefront and soffit interface are sealed with one-half-inch sealant, backer rods, and typical shims.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
