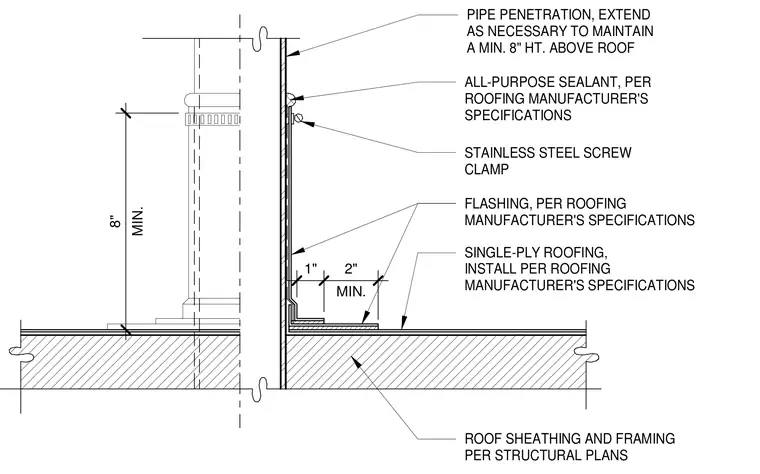

A pipe penetration extends through the roof sheathing and framing supported per structural plans, maintaining a minimum eight-inch height above the roof finish. Single-ply roofing is installed on the roof assembly per the manufacturer's specifications. Flashing extends up the pipe base, secured with a stainless steel screw clamp and sealed with all-purpose sealant at the top edge.
PIPE PENETRATION, EXTEND AS NECESSARY TO MAINTAIN A MIN. 8" HT. ABOVE ROOF FLASHING, PER ROOFING MANUFACTURER'S SPECIFICATIONS STAINLESS STEEL SCREW CLAMP ALL-PURPOSE SEALANT, PER ROOFING MANUFACTURER'S SPECIFICATIONS ROOF SHEATHING AND FRAMING PER STRUCTURAL PLANS SINGLE-PLY ROOFING, INSTALL PER ROOFING MANUFACTURER'S SPECIFICATIONS MIN. 8" 1" MIN. 2"
