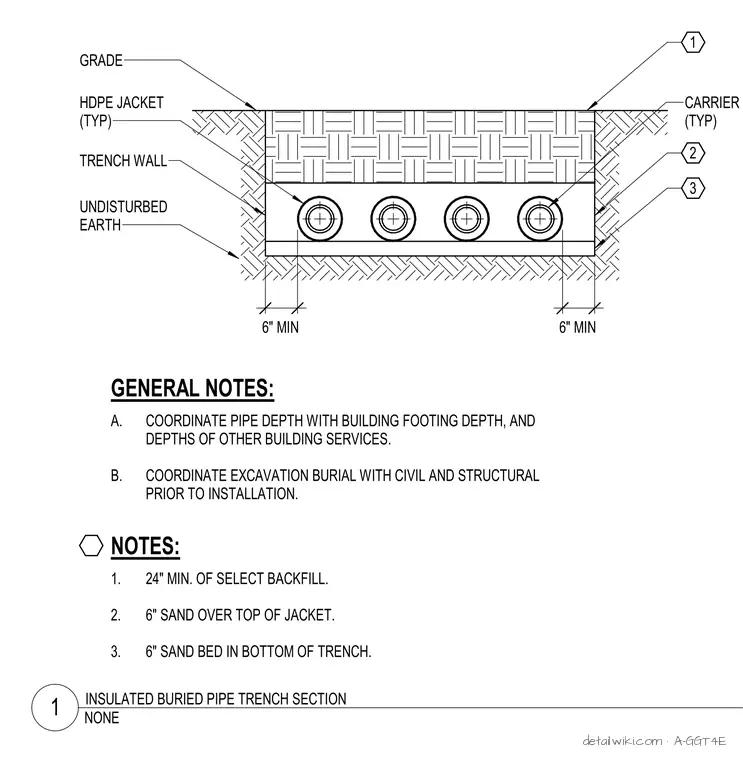

This trench section details the underground installation of carrier pipes enclosed in a high-density polyethylene jacket within undisturbed earth. The assembly includes a six-inch minimum sand bed at the bottom of the trench, a six-inch layer of sand over the top of the jacket, and a minimum twenty-four-inch depth of select backfill up to grade. Carrier pipes maintain a six-inch minimum clearance and are coordinated with building footings and other subterranean utilities. Excavation and burial details must be coordinated with civil and structural engineering prior to installation.
A. COORDINATE PIPE DEPTH WITH BUILDING FOOTING DEPTH, AND DEPTHS OF OTHER BUILDING SERVICES. B. COORDINATE EXCAVATION BURIAL WITH CIVIL AND STRUCTURAL PRIOR TO INSTALLATION. GENERAL NOTES: HDPE JACKET (TYP) GRADE TRENCH WALL UNDISTURBED EARTH 1. 24" MIN. OF SELECT BACKFILL. 2. 6" SAND OVER TOP OF JACKET. 3. 6" SAND BED IN BOTTOM OF TRENCH. NOTES: CARRIER PIPE (TYP) 6" MIN 6" MIN 1 2 3 NONE 1 INSULATED BURIED PIPE TRENCH SECTION
