1/4" Stainless Steel Angle Trim at Curtain Wall and Wood Siding

Materials

Steel Cold-formed Steel Stainless Steel Timber / Wood Gypsum / Drywall

Elements

Columns Walls Curtain Walls

Connections

HSS Connection

About this detail

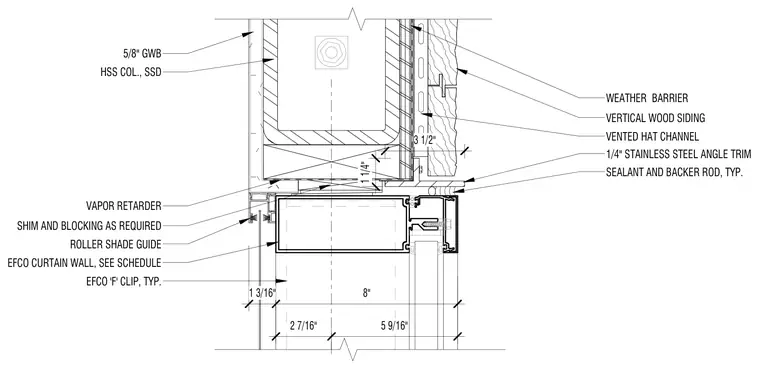

A structural hollow structural section column wrapped in five-eighths inch gypsum board supports a vertical wood siding assembly over a vented hat channel and weather barrier. A quarter-inch stainless steel angle trim finishes the junction with a sealant joint and backer rod. Below the assembly, an Efco curtain wall head profile integrates with a roller shade guide, secured via typical Efco F-clips, shims, and blocking with a vapor retarder.
