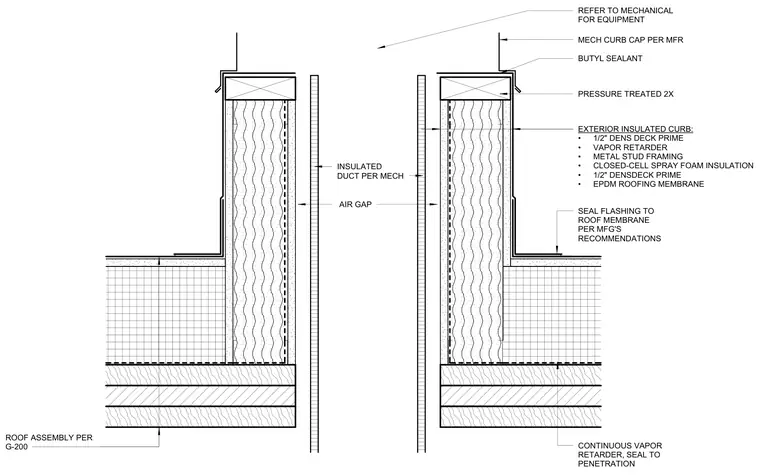

The roof exhaust curb assembly features cold-formed metal stud framing insulated with closed-cell spray foam and faced with half-inch DensDeck Prime on both sides. A continuous vapor retarder extends beneath the roof assembly and seals to the penetration. The exterior is wrapped in an EPDM roofing membrane, with flashing sealed to the membrane per the manufacturer's recommendations. A pressure-treated 2x wood plate caps the curb, finished with a mechanical curb cap and butyl sealant. An insulated duct runs through the interior opening with an air gap.
CONTINUOUS VAPOR RETARDER, SEAL TO PENETRATION SEAL FLASHING TO ROOF MEMBRANE PER MFG'S RECOMMENDATIONS MECH CURB CAP PER MFR ROOF ASSEMBLY PER G-200 BUTYL SEALANT PRESSURE TREATED 2X INSULATED DUCT PER MECH • • • • • • EXTERIOR INSULATED CURB: 1/2" DENS DECK PRIME VAPOR RETARDER METAL STUD FRAMING CLOSED-CELL SPRAY FOAM INSULATION 1/2" DENSDECK PRIME EPDM ROOFING MEMBRANE AIR GAP REFER TO MECHANICAL FOR EQUIPMENT
