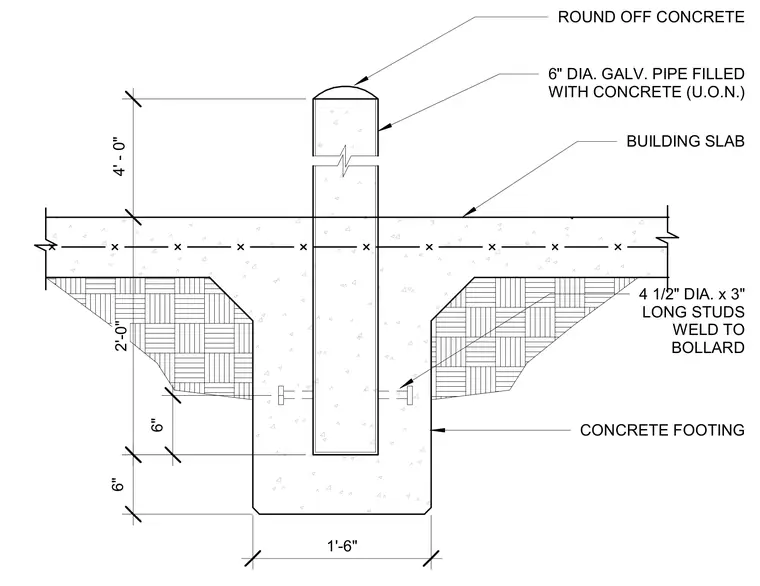

A six-inch diameter galvanized steel pipe is filled with concrete and extends four feet above the building slab. Four one-half inch diameter by three-inch long studs are welded to the lower portion of the bollard to anchor it within the surrounding concrete. The assembly is anchored into a concrete footing beneath the building slab, with the top of the concrete inside the pipe rounded off.
ROUND OFF CONCRETE 4 1/2" DIA. x 3" LONG STUDS WELD TO BOLLARD BUILDING SLAB CONCRETE FOOTING 6" DIA. GALV. PIPE FILLED WITH CONCRETE (U.O.N.) 6" 2'-0" . 6" 4' - 0" 1'-6"
