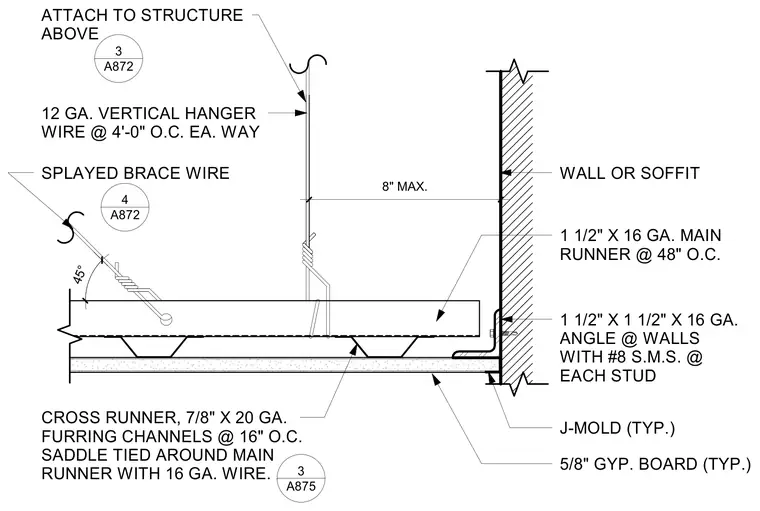

The ceiling framing is suspended from the structure above using twelve-gauge vertical hanger wires spaced at four feet on center each way, supplemented by forty-five-degree splayed brace wires. One-and-a-half-inch by sixteen-gauge main runners are spaced at forty-eight inches on center, supporting seven-eighths-inch by twenty-gauge furring channels spaced at sixteen inches on center and saddle-tied with sixteen-gauge wire. A perimeter angle measuring one-and-a-half by one-and-a-half inches by sixteen-gauge is secured to the wall or soffit using number eight sheet metal screws at each stud. A typical J-mold trim is installed at the perimeter, and five-eighths-inch gypsum board is fastened to the underside of the furring channels.
A872 4 A872 3 A875 3 45° 8" MAX. ATTACH TO STRUCTURE ABOVE 12 GA. VERTICAL HANGER WIRE @ 4'-0" O.C. EA. WAY CROSS RUNNER, 7/8" X 20 GA. FURRING CHANNELS @ 16" O.C. SADDLE TIED AROUND MAIN RUNNER WITH 16 GA. WIRE. WALL OR SOFFIT 1 1/2" X 16 GA. MAIN RUNNER @ 48" O.C. 1 1/2" X 1 1/2" X 16 GA. ANGLE @ WALLS WITH #8 S.M.S. @ EACH STUD 5/8" GYP. BOARD (TYP.) SPLAYED BRACE WIRE J-MOLD (TYP.)
