Architectural · A-GGGJT

AC Closet Plan Detail at Party Wall

Materials

Concrete Timber / Wood Glass / Glazing Gypsum / Drywall

Elements

About this detail

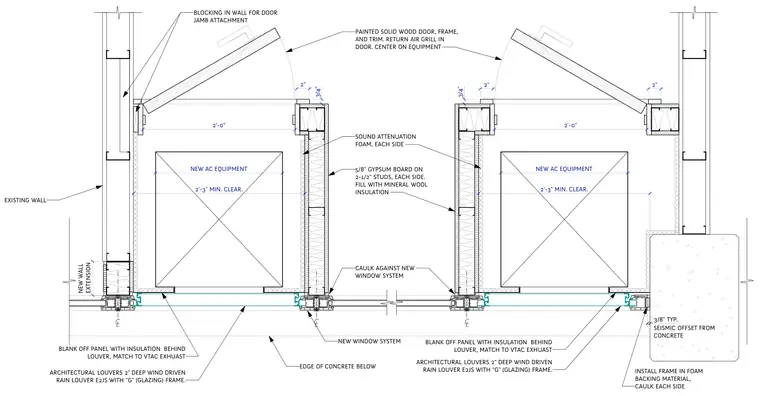

An air conditioning closet plan layout adjacent to a party wall features new AC equipment housed behind architectural louvers and a new window system. The partition walls are constructed with five-eighths-inch gypsum board on two-and-a-half-inch studs on each side, filled with mineral wool insulation and sound attenuation foam. A painted solid wood door, frame, and trim with a return air grill in the door centers on the equipment, maintaining a two-foot-three-inch minimum clear space. The exterior features two-inch deep wind-driven rain architectural louvers with a glazing frame and a blank-off panel with insulation behind, matched to the VTAC exhaust. Joints and frames are installed with foam backing material and caulked on each side, with a three-eighths-inch typical seismic offset from the concrete edge below.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
