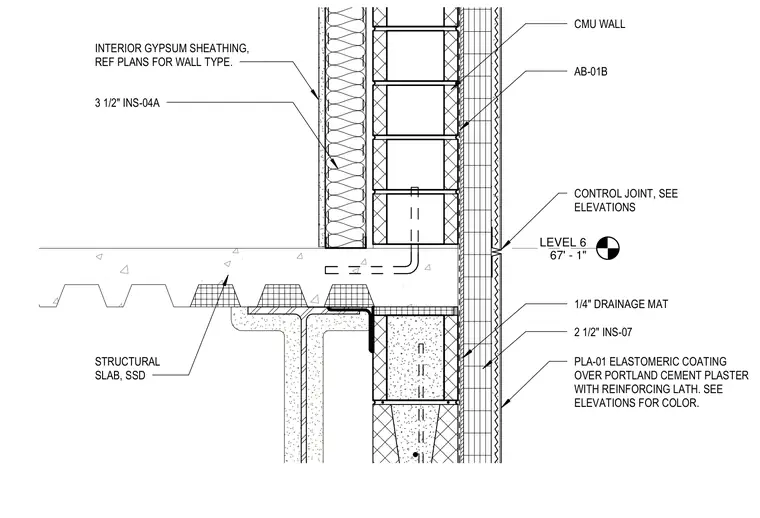

This wall section details a concrete masonry unit wall assembly intersecting a structural slab at Level 6. The exterior finish consists of an elastomeric coating over portland cement plaster with reinforcing lath, supported by a 1/4-inch drainage mat and 2 1/2-inch insulation. The interior features gypsum sheathing backed by 3 1/2-inch insulation. A control joint is integrated into the exterior cement plaster finish at the slab intersection.
LEVEL 6 67' - 1" CMU WALL AB-01B PLA-01 ELASTOMERIC COATING OVER PORTLAND CEMENT PLASTER WITH REINFORCING LATH. SEE ELEVATIONS FOR COLOR. INTERIOR GYPSUM SHEATHING, REF PLANS FOR WALL TYPE. 2 1/2" INS-07 1/4" DRAINAGE MAT 3 1/2" INS-04A CONTROL JOINT, SEE ELEVATIONS STRUCTURAL SLAB, SSD
