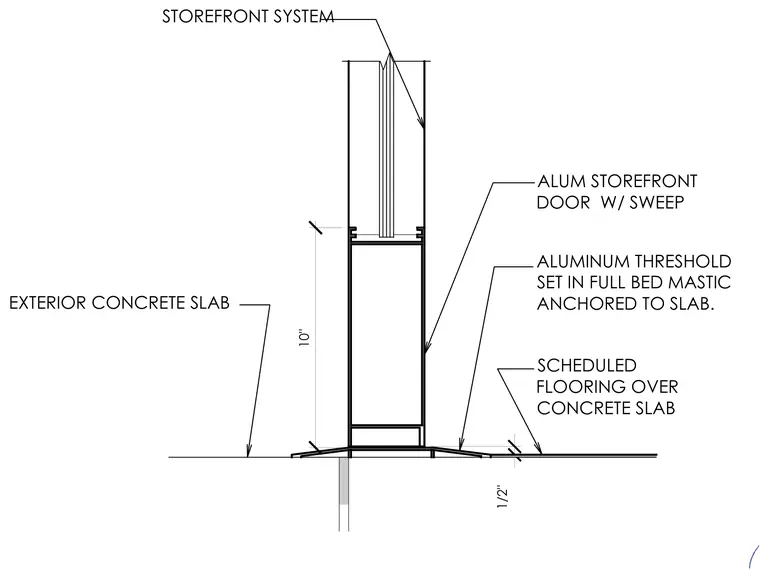

An aluminum storefront door threshold is set in a full bed of mastic and mechanically anchored to the exterior concrete slab. The scheduled interior flooring meets the slab transition at the door assembly. An aluminum storefront door with a bottom sweep closes against the threshold.
STOREFRONT SYSTEM EXTERIOR CONCRETE SLAB SCHEDULED FLOORING OVER CONCRETE SLAB ALUMINUM THRESHOLD SET IN FULL BED MASTIC ANCHORED TO SLAB. ALUM STOREFRONT DOOR W/ SWEEP 1/2" 10"
