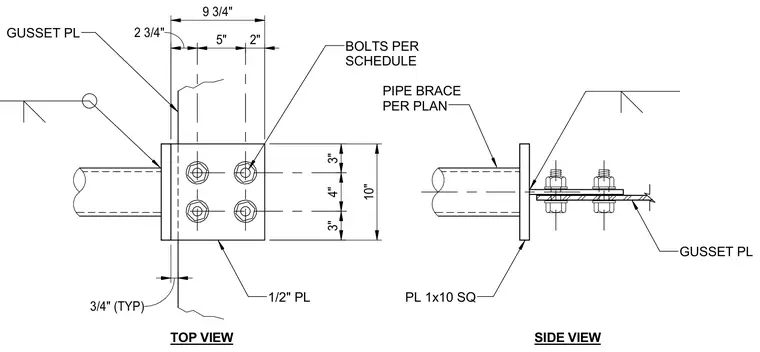

A pipe brace connects to a structural support using a one-half inch gusset plate and a ten-inch square plate. The pipe connects to the square plate, while the gusset plate secures with bolts sized per schedule. The side and top views detail the plate dimensions, bolt spacing, and weld configurations. The connection layout includes a three-quarters inch typical clearance dimension.
9 3/4" 2 3/4" 5" 2" 3/4" (TYP) GUSSET PL PIPE BRACE PER PLAN GUSSET PL 1/2" PL PL 1x10 SQ 10" 3" 4" 3" TOP VIEW SIDE VIEW BOLTS PER SCHEDULE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
