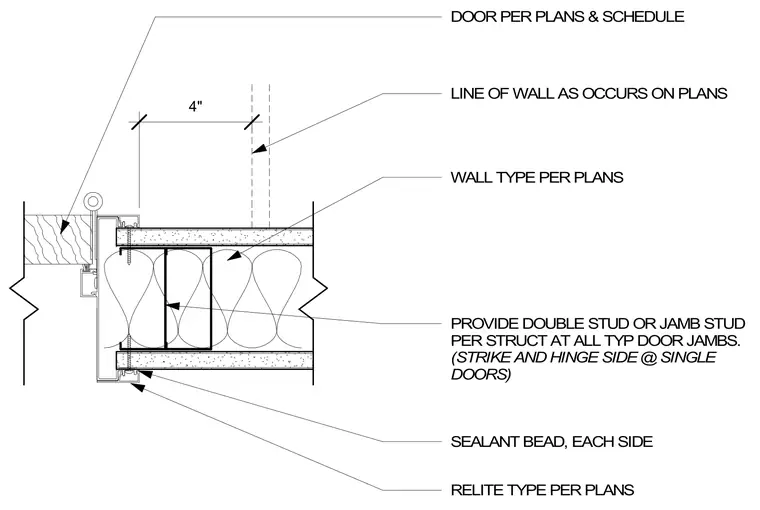

An aluminum door frame and relite assembly connects to a framed wall partition built with double studs or jamb studs per structural requirements at typical door jambs for both strike and hinge sides. A sealant bead is applied to each side of the frame where it meets the wall finishes. The wall assembly receives finishes and wall types sized per plans with four-inch dimensional clearance.
WALL TYPE PER PLANS PROVIDE DOUBLE STUD OR JAMB STUD PER STRUCT AT ALL TYP DOOR JAMBS. (STRIKE AND HINGE SIDE @ SINGLE DOORS) RELITE TYPE PER PLANS DOOR PER PLANS & SCHEDULE LINE OF WALL AS OCCURS ON PLANS 4" SEALANT BEAD, EACH SIDE
