Architectural · A-GG4YT

Storefront Sill Detail

Materials

Elements

Storefronts Floors / Slabs Waterproofing / Flashing

About this detail

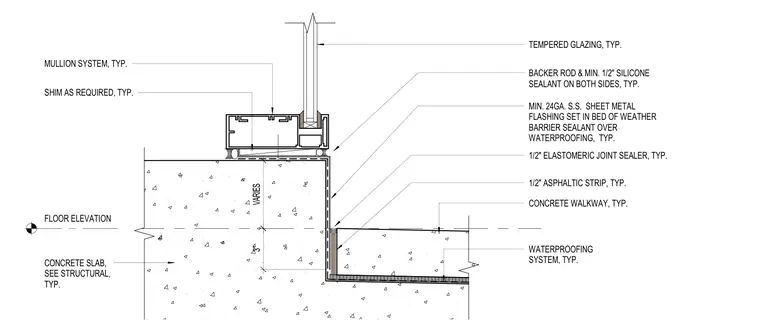

This storefront sill assembly mounts onto a concrete floor slab with adjustable shims beneath the aluminum mullion system. A minimum twenty-four gauge stainless steel sheet metal flashing is set in a bed of weather barrier sealant over a continuous waterproofing membrane. Backer rods and minimum half-inch silicone sealants seal both sides of the joint, complemented by an elastomeric joint sealer and a half-inch asphaltic strip isolating the concrete walkway. Tempered glazing is glazed directly into the mullion frame above.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
