An elevator shaft wall assembly features 152mm steel stud framing with the cavity filled with acoustical insulation. A 64x64 sheet metal angle with shims as required is positioned at the shaft corner connection.

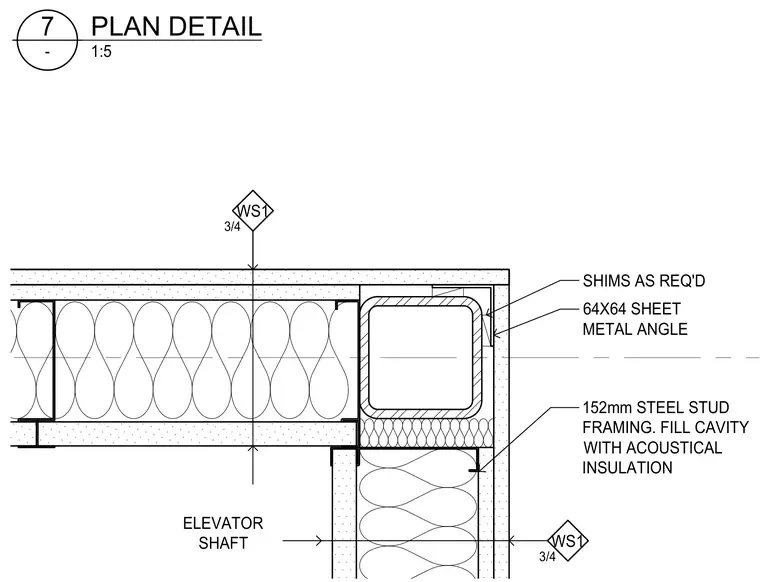

3/4 WS1 3/4 WS1 ELEVATOR SHAFT 152mm STEEL STUD FRAMING. FILL CAVITY WITH ACOUSTICAL INSULATION 64X64 SHEET METAL ANGLE SHIMS AS REQ'D 7 - PLAN DETAIL 1:5
