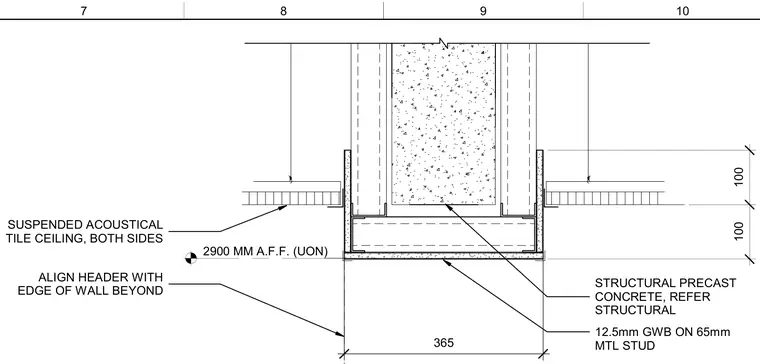

A suspended acoustical tile ceiling terminates at both sides of a framed wall header positioned 2900 millimeters above the finished floor level. The assembly consists of 12.5-millimeter gypsum wallboard installed over 65-millimeter metal studs forming the header enclosing a structural precast concrete element above. The header alignment matches the edge of the wall beyond.
100 100 SUSPENDED ACOUSTICAL TILE CEILING, BOTH SIDES ALIGN HEADER WITH EDGE OF WALL BEYOND 2900 MM A.F.F. (UON) STRUCTURAL PRECAST CONCRETE, REFER STRUCTURAL 12.5mm GWB ON 65mm MTL STUD 365 7 8 9 10
