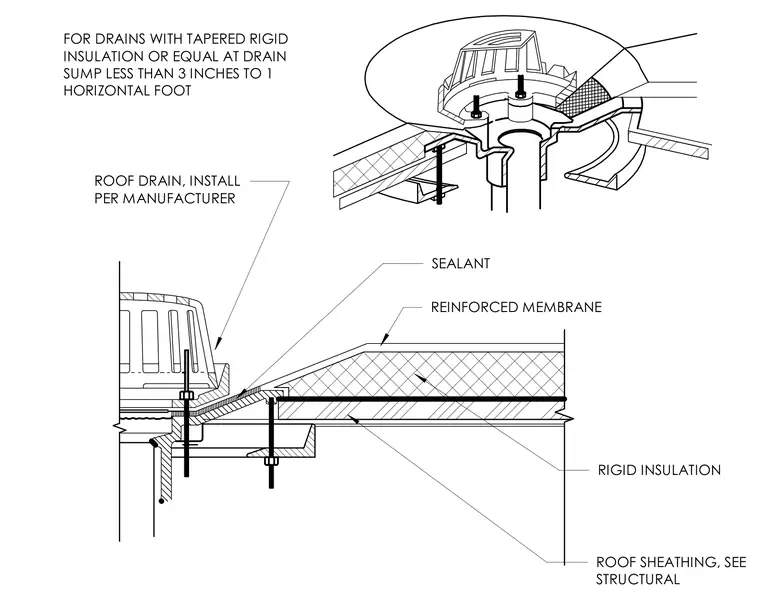

This roof drain assembly integrates tapered rigid insulation and a reinforced membrane over structural roof sheathing. A roof drain fixture is installed per manufacturer specifications with appropriate sealant at the flange. Tapered rigid insulation forms a drainage sump around the drain basin, sloping less than three inches to one horizontal foot.
ROOF SHEATHING, SEE STRUCTURAL FOR DRAINS WITH TAPERED RIGID INSULATION OR EQUAL AT DRAIN SUMP LESS THAN 3 INCHES TO 1 HORIZONTAL FOOT ROOF DRAIN, INSTALL PER MANUFACTURER SEALANT REINFORCED MEMBRANE RIGID INSULATION
