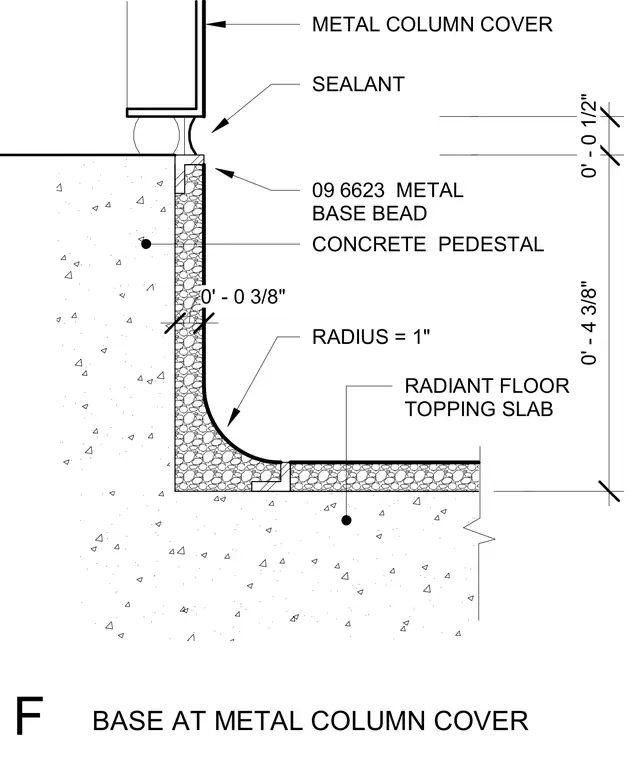

A metal column cover terminates above a concrete pedestal with a continuous sealant joint. A metal base bead specified under section 09 6623 is embedded at the top of the concrete pedestal margin. The radiant floor topping slab transitions into the concrete pedestal with a one-inch radius cove. Vertical and horizontal dimensions establish the spacing between the metal column cover and the floor topping slab.
F BASE AT METAL COLUMN COVER RADIANT FLOOR TOPPING SLAB CONCRETE PEDESTAL METAL COLUMN COVER 09 6623 METAL BASE BEAD 0' - 4 3/8" 0' - 0 1/2" RADIUS = 1" SEALANT 0' - 0 3/8"
