A vertical fiber cement panel cladding system at a roof overhang and soffit perpendicular to the structural framing comprises a 1-3/4 inch by 14 inch laminated veneer lumber header, a 54-mil cold-formed steel angle connected with quarter-inch self-drilling screws at 24 inches on center, and exterior insulation. Sheet metal flashing, a cleat lap over the fascia, and vapor retarder components seal the roof edge. All exposed surfaces receive exterior paint finish.

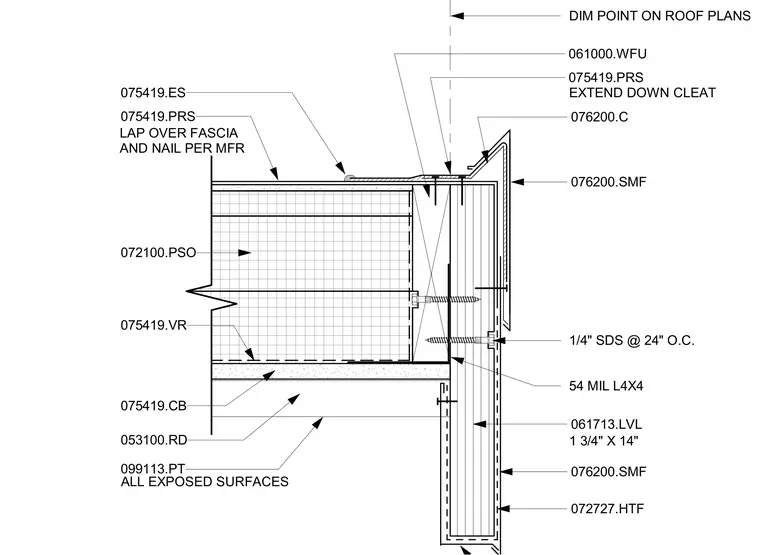

053100.RD 075419.CB 075419.VR 072100.PSO 075419.PRS 072727.HTF 076200.SMF 061713.LVL 1 3/4" X 14" 54 MIL L4X4 1/4" SDS @ 24" O.C. 075419.ES 075419.PRS 061000.WFU 076200.C EXTEND DOWN CLEAT LAP OVER FASCIA AND NAIL PER MFR 099113.PT ALL EXPOSED SURFACES 076200.SMF DIM POINT ON ROOF PLANS
