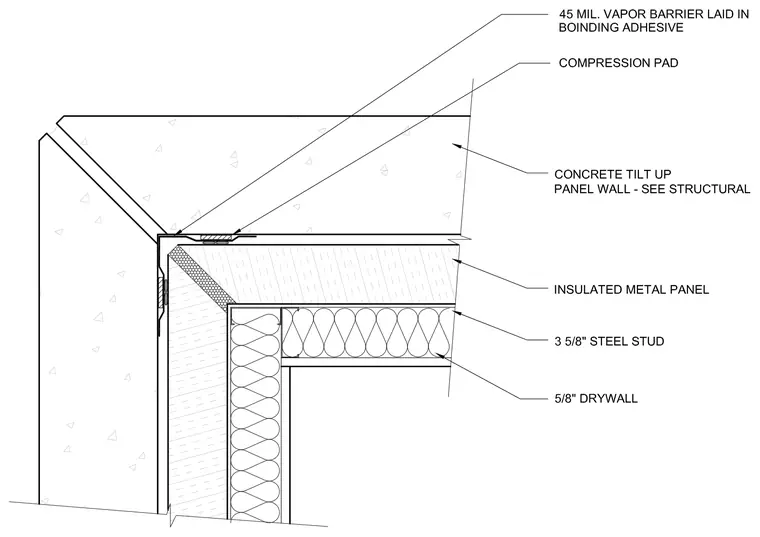

An exterior corner detail for a concrete tilt-up panel wall featuring a 45 mil vapor barrier laid in bonding adhesive and a compression pad at the panel joint. The interior side incorporates insulated metal panels backed by 3 5/8-inch steel studs and finished with 5/8-inch drywall.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
