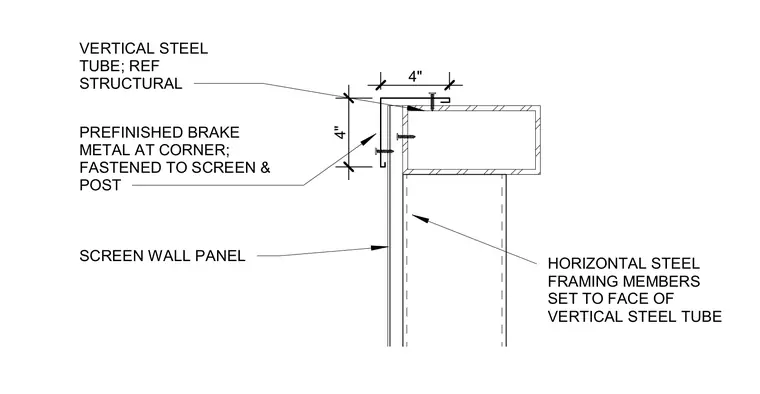

A prefinished brake metal corner piece wraps the exterior of a vertical steel tube and is fastened directly to the screen and post. Horizontal steel framing members are set flush to the face of the vertical steel tube to support the exterior screen wall panel. Mechanical fasteners secure the brake metal and framing elements together at the outside corner.
VERTICAL STEEL TUBE; REF STRUCTURAL PREFINISHED BRAKE METAL AT CORNER; FASTENED TO SCREEN & POST SCREEN WALL PANEL HORIZONTAL STEEL FRAMING MEMBERS SET TO FACE OF VERTICAL STEEL TUBE 4" 4"
