Architectural · A-GF79F

Stone Parapet Cap at Standing Seam Roof Intersection

Materials

Steel Stainless Steel Timber / Wood Stone Metal (misc.)

Elements

Roofs Parapets Waterproofing / Flashing Insulation Connections / Plates

About this detail

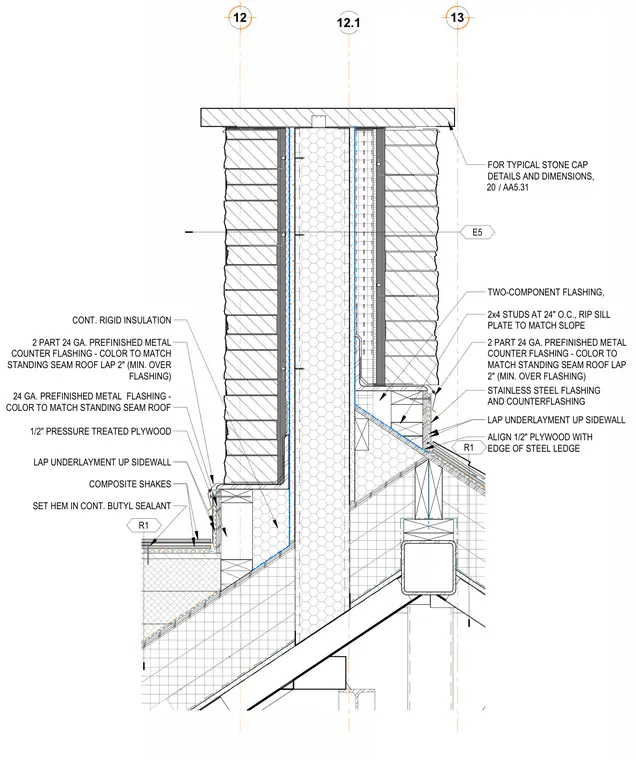

A stone cap seats over a central core with continuous rigid insulation and exterior stone cladding on both sides. The roof intersection incorporates two-by-four wood studs spaced at twenty-four inches on center with a sill plate ripped to match the roof slope. Waterproofing layers include stainless steel flashing and counterflashing, two-component flashing, and twenty-four gauge prefinished metal flashings lapped at least two inches. The roof build-up utilizes half-inch pressure-treated plywood, composite shakes, and roofing underlayment lapped up the sidewall with hems set in continuous butyl sealant.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
