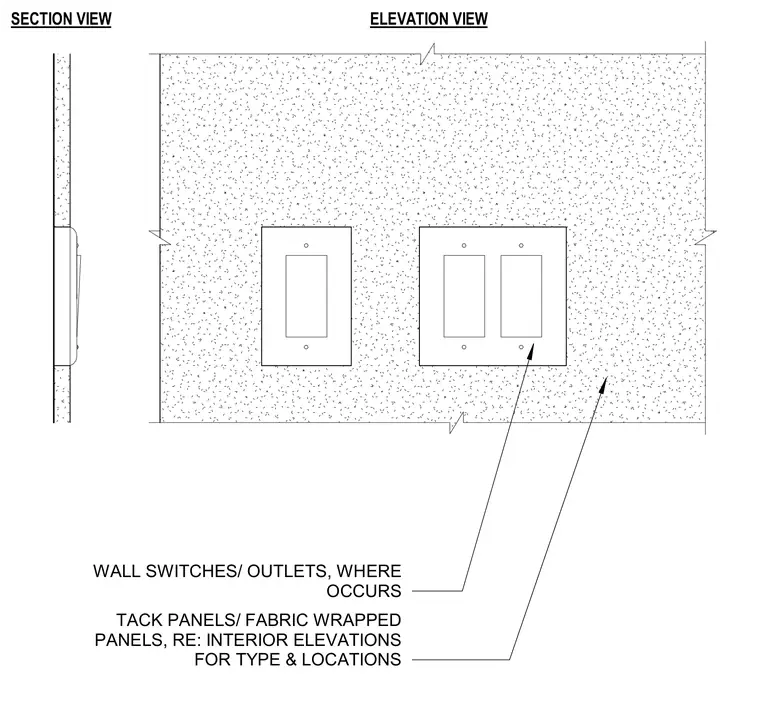

Fabric-wrapped tack panels feature cutouts to accommodate wall switches and electrical outlets where required. The section view and elevation view indicate the alignment of device cover plates flush with the finish surface of the fabric panels. Types and locations of panels and devices are coordinated with interior elevations.
SECTION VIEW ELEVATION VIEW TACK PANELS/ FABRIC WRAPPED PANELS, RE: INTERIOR ELEVATIONS FOR TYPE & LOCATIONS WALL SWITCHES/ OUTLETS, WHERE OCCURS
