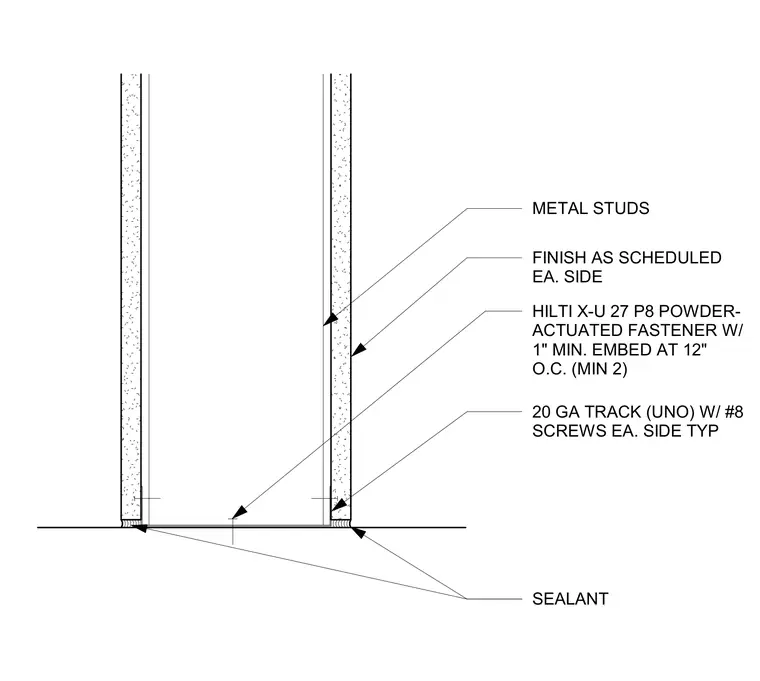

Metal studs frame into a twenty-gauge track anchored to the substrate with Hilli X-U 27 P8 powder-actuated fasteners featuring one-inch minimum embedment spaced at twelve inches on center with a minimum of two fasteners. Gypsum board finishes are applied to each side and secured with number eight screws on each side typically. A bead of sealant is applied at the base on each side.
FINISH AS SCHEDULED EA. SIDE SEALANT 20 GA TRACK (UNO) W/ #8 SCREWS EA. SIDE TYP HILTI X-U 27 P8 POWDER- ACTUATED FASTENER W/ 1" MIN. EMBED AT 12" O.C. (MIN 2) METAL STUDS
