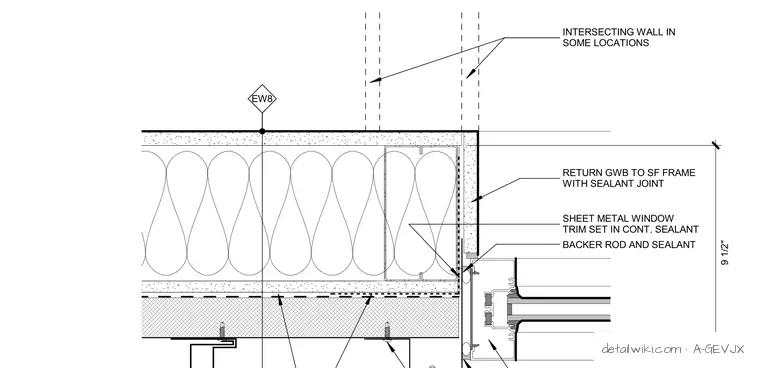

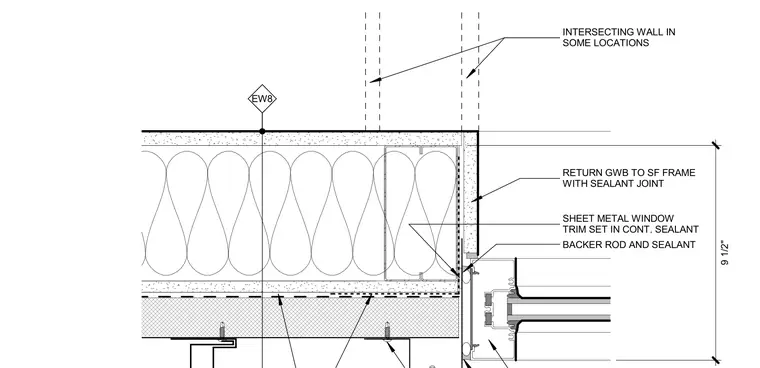

A-GEVJX — Window - Jamb at 4th Fl. - Vertical Metal Cladding

Architectural · A-GEVJX

Window - Jamb at 4th Fl. - Vertical Metal Cladding

Scale: 3" = 1'-0"
Units: imperial
Sheet: A7.52
Discipline: Architectural

Materials

Aluminum Composite Glass / Glazing Gypsum / Drywall Metal (misc.)

Elements

Anchors / Embeds Expansion / Control Joints Facades / Cladding Insulation Storefronts Walls Waterproofing / Flashing Windows

Text on the drawing

RETURN GWB TO SF FRAME WITH SEALANT JOINT SHEET METAL WINDOW TRIM SET IN CONT. SEALANT BACKER ROD AND SEALANT 9 1/2" INTERSECTING WALL IN SOME LOCATIONS EW8 EW8

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
