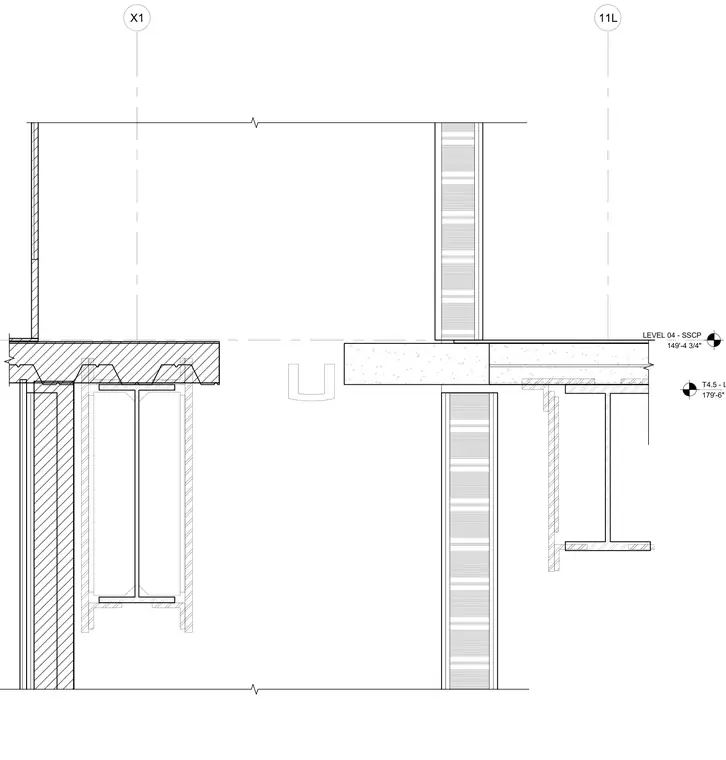

An expansion joint assembly bridges the structural gap between adjacent steel framing bays at level 04 and the penthouse level. Wide-flange steel beams support a concrete slab on metal deck on one side and a framed floor assembly on the other. Grid lines X1 and 11L coordinate the structural column locations across the joint. Vertical partition walls and exterior cladding conditions align with the separation.
