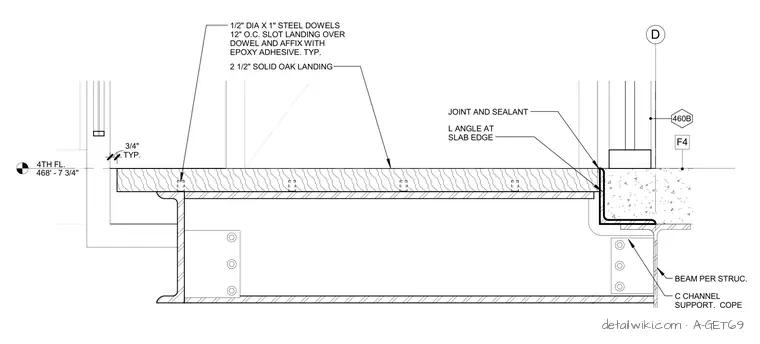

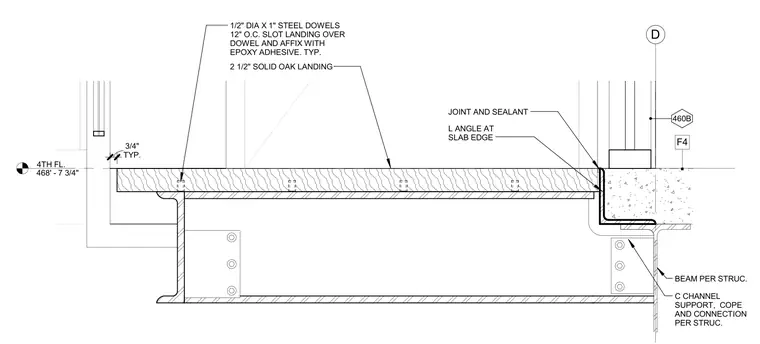

A-GET69 — 4TH FLOOR LANDING SECTION

Architectural · A-GET69

4TH FLOOR LANDING SECTION

Scale: 1 1/2" = 1'-0"
Units: imperial
Sheet: A5.12
Discipline: Architectural

Materials

Steel Timber / Wood

Elements

Anchors / Embeds Beams Connections / Plates Floors / Slabs Reinforcing Stairs

Connections

Rebar Splice / Development Timber / Mass-Timber Connection

Text on the drawing

4TH FL. 468' - 7 3/4" D JOINT AND SEALANT 460B L ANGLE AT SLAB EDGE BEAM PER STRUC. C CHANNEL SUPPORT, COPE AND CONNECTION PER STRUC. 2 1/2" SOLID OAK LANDING 1/2" DIA X 1" STEEL DOWELS 12" O.C. SLOT LANDING OVER DOWEL AND AFFIX WITH EPOXY ADHESIVE. TYP. TYP. 3/4" F4
