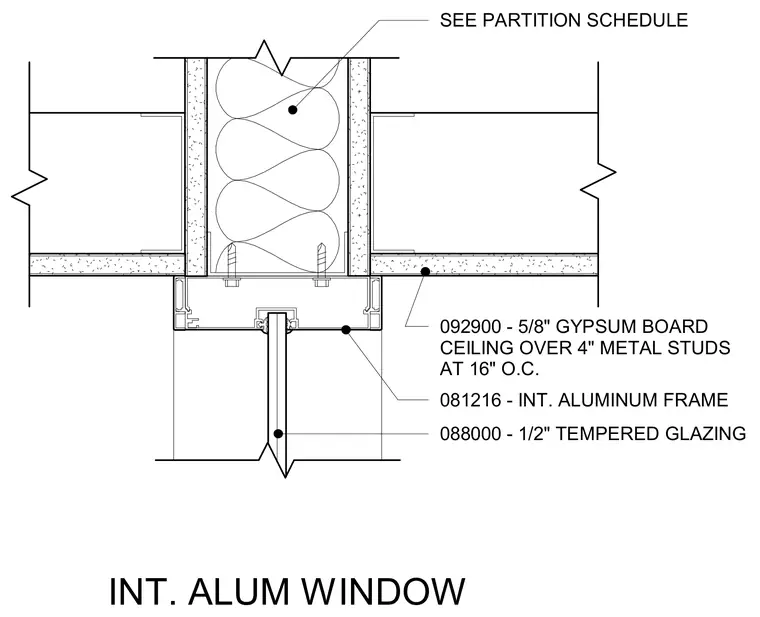

An interior aluminum window frame secures one-half-inch tempered glazing at the head condition. The aluminum frame is fastened to four-inch metal studs with gypsum board partitions sized per the partition schedule. Adjacent gypsum board ceilings use five-eighths-inch gypsum board over four-inch metal studs spaced at sixteen inches on center.
088000 - 1/2" TEMPERED GLAZING SEE PARTITION SCHEDULE 081216 - INT. ALUMINUM FRAME 092900 - 5/8" GYPSUM BOARD CEILING OVER 4" METAL STUDS AT 16" O.C. INT. ALUM WINDOW
