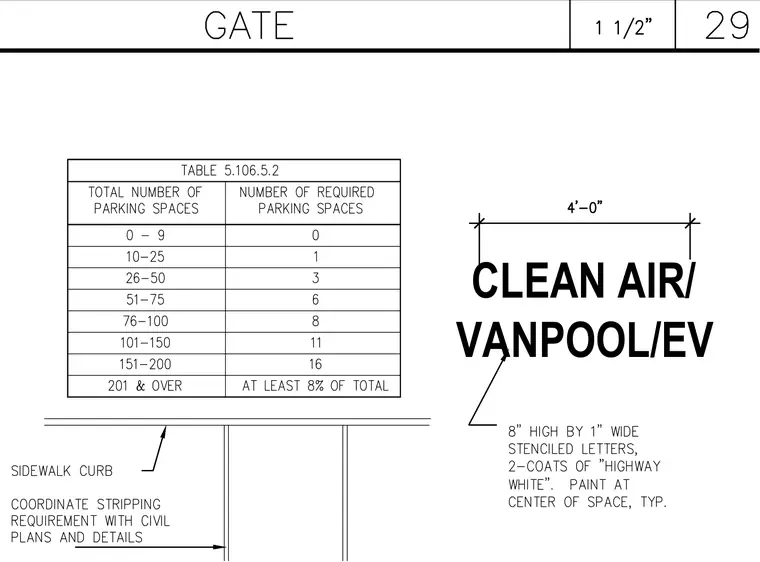

Table 5.106.5.2 establishes the required number of clean air, vanpool, and electric vehicle parking spaces based on the total number of parking spaces provided, ranging from zero for up to nine spaces to at least eight percent for over two hundred0 spaces. Pavement markings consist of eight-inch high by one-inch wide stenciled letters reading CLEAN AIR and VANPOOL and EV centered in the space, applied with two coats of highway white paint. Dimensions indicate a four-foot overall width for the stenciled text layout adjacent to the sidewalk curb.
