A rated metal stud partition extends past a suspended lay-in ceiling, anchored at the top to a cold box with a 1-inch by 2-inch by 12-gauge steel strap. A 12-gauge vertical hanger wire with 4 tight turns supports the ceiling grid system 1 1/2 inches below the structure. Batt insulation fills the partition cavity per the architectural partition schedule. The suspended lay-in ceiling coordinates with the reflected ceiling plan.

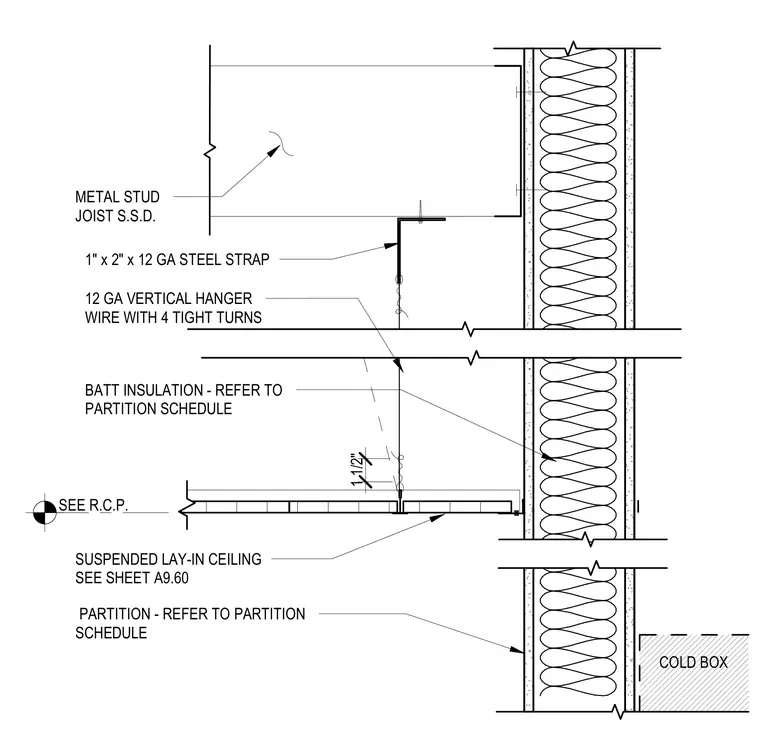

PARTITION - REFER TO PARTITION SCHEDULE BATT INSULATION - REFER TO PARTITION SCHEDULE SEE R.C.P. SUSPENDED LAY-IN CEILING SEE SHEET A9.60 1 1/2" 1" x 2" x 12 GA STEEL STRAP 12 GA VERTICAL HANGER WIRE WITH 4 TIGHT TURNS COLD BOX METAL STUD JOIST S.S.D.
