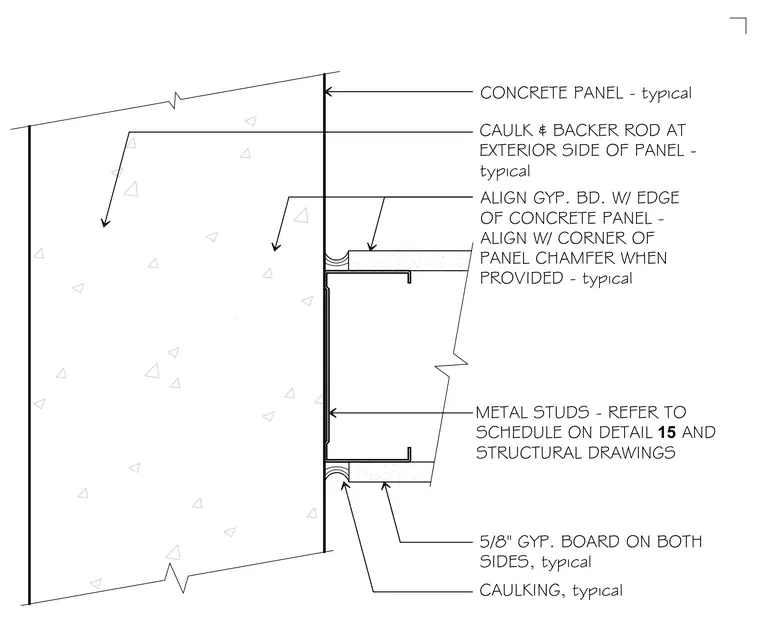

A cold-formed metal stud partition terminates against a concrete panel, finished with five-eighths inch gypsum board on both sides. The exterior side of the panel joint is sealed with caulking and backer rod. The gypsum board aligns with the edge of the concrete panel or the corner of the panel chamfer when provided. Typical caulking is applied at the interior joint between the gypsum board and the concrete surface. Metal studs are sized per the schedule on detail fifteen and structural drawings.
CONCRETE PANEL - typical METAL STUDS - REFER TO SCHEDULE ON DETAIL 15 AND STRUCTURAL DRAWINGS 5/8" GYP. BOARD ON BOTH SIDES, typical CAULKING, typical ALIGN GYP. BD. W/ EDGE OF CONCRETE PANEL - ALIGN W/ CORNER OF PANEL CHAMFER WHEN PROVIDED - typical CAULK & BACKER ROD AT EXTERIOR SIDE OF PANEL - typical n T <r
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
