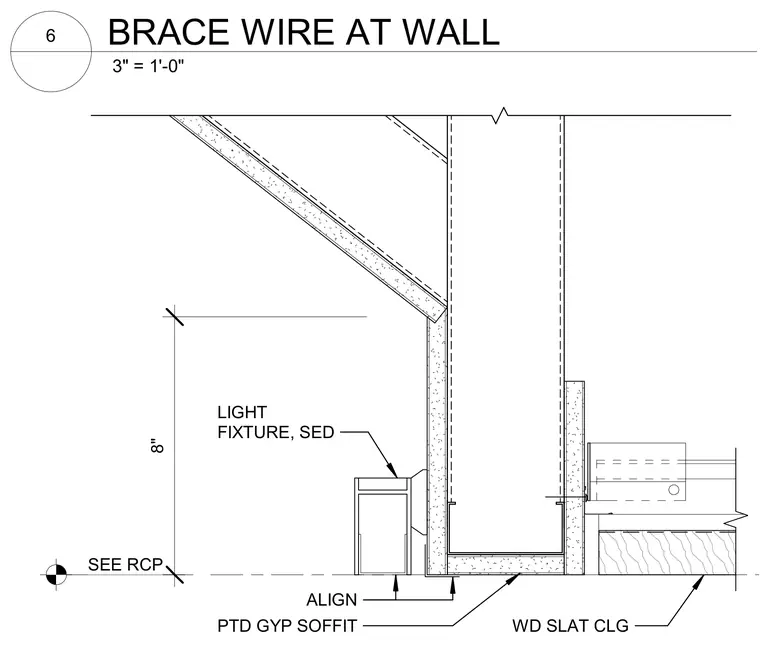

A light fixture is recessed into a painted gypsum board soffit aligned with an adjacent wood slat ceiling system. Brace wire supports the assembly at the wall with an eight-inch vertical clearance dimension. The layout references the reflected ceiling plan for exact positioning.
WD SLAT CLG PTD GYP SOFFIT LIGHT FIXTURE, SED ALIGN 8" SEE RCP 3" = 1'-0" BRACE WIRE AT WALL 6
