Base Cabinet Trash Container Detail

Materials

Elements

Partitions Doors Millwork / Casework Anchors / Embeds Roof / Floor Openings

About this detail

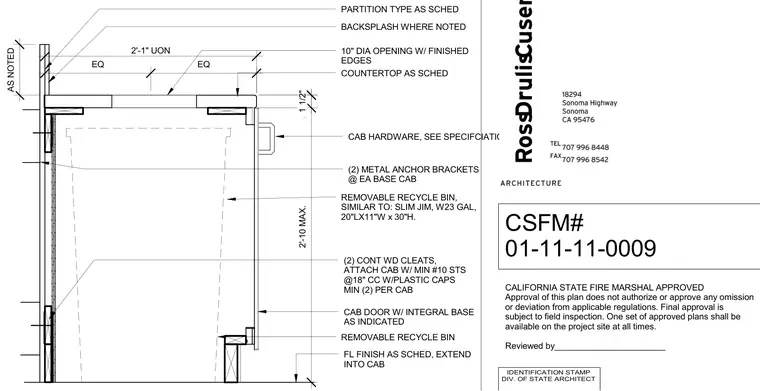

This millwork detail shows a base cabinet designed to house a removable recycling bin with dimensions of twenty inches long by eleven inches wide by thirty inches high. The countertop features a ten-inch diameter opening with finished edges for waste disposal. The cabinet is secured to the wall using two continuous wood cleats attached with minimum number ten stainless steel screws spaced at eighteen inches on center with plastic caps, using at least two per cabinet. Two metal anchor brackets are provided at each base cabinet, and the assembly includes a cabinet door with an integral base and specified cabinet hardware.
