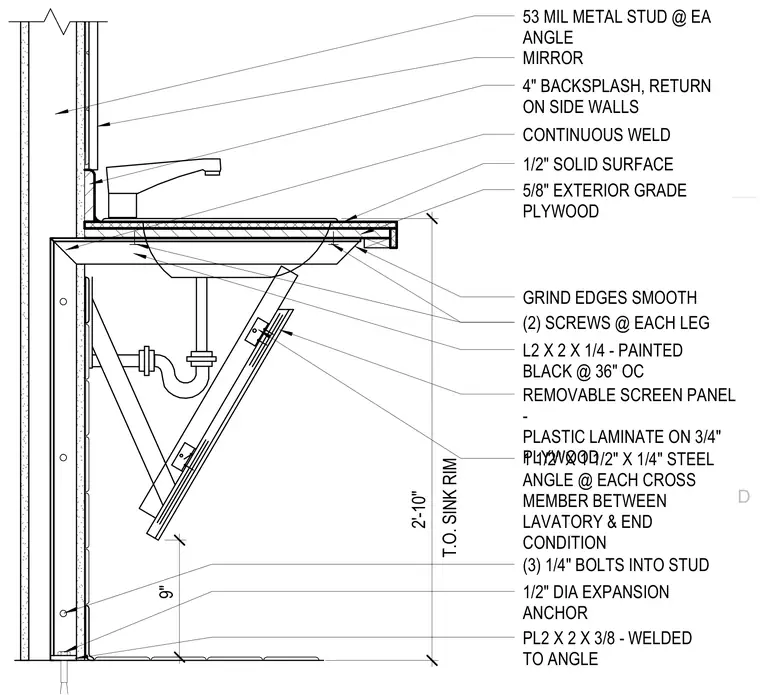

An ADA compliant sink assembly is supported by a structural steel angle frame secured to 53 mil cold-formed metal studs with half-inch diameter expansion anchors. A half-inch solid surface countertop is laid over five-eighths inch exterior grade plywood, complete with a four-inch backsplash and side returns. A painted black 2x2x1/4-inch steel angle spaced at thirty-six inches on center supports the sink basin, with a welded 2x2x3/8-inch plate anchoring the assembly. A removable screen panel made of plastic laminate on three-quarter inch plywood is attached beneath the lavatory with two screws at each leg, concealing the plumbing while allowing accessible clearance.
9" T.O. SINK RIM 2'-10" MIRROR 4" BACKSPLASH, RETURN ON SIDE WALLS 1/2" SOLID SURFACE REMOVABLE SCREEN PANEL - PLASTIC LAMINATE ON 3/4" PLYWOOD 1 1/2" X 1 1/2" X 1/4" STEEL ANGLE @ EACH CROSS MEMBER BETWEEN LAVATORY & END CONDITION GRIND EDGES SMOOTH (2) SCREWS @ EACH LEG 5/8" EXTERIOR GRADE PLYWOOD L2 X 2 X 1/4 - PAINTED BLACK @ 36" OC PL2 X 2 X 3/8 - WELDED TO ANGLE 1/2" DIA EXPANSION ANCHOR 53 MIL METAL STUD @ EA ANGLE CONTINUOUS WELD (3) 1/4" BOLTS INTO STUD D
