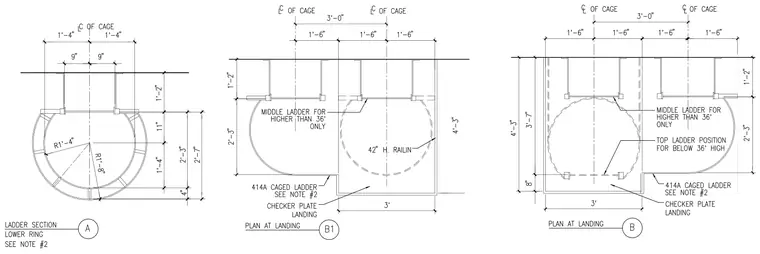

The drawing shows a lower ring ladder section alongside two landing plan configurations for a caged ladder system. The lower ring section details a circular cage radius of one foot four inches with an outer radius of one foot eight inches centered on the ladder cage. The landing plans show checker plate landings with a forty-two inch high railing and layout dimensions for middle ladder positions for heights exceeding thirty-six feet.
